In the realm of product development and quality assurance, ensuring
the reliability and durability of products under various
environmental conditions is of utmost importance. The MIL - STD -
810H - Method 514.8 - Vibration testing is a widely recognized
standard that plays a crucial role in evaluating the performance of
products when subjected to vibration. Electrodynamic shakers,
designed specifically to conduct this type of testing, have become
an indispensable tool for industries ranging from aerospace and
defense to consumer electronics.
1. Understanding MIL - STD - 810H - Method 514.8 - Vibration
Testing
The Significance of Vibration Testing
Vibration is a common environmental stress that products encounter
during transportation, storage, and operation. Whether it's the
vibrations experienced by an aircraft during flight, a vehicle on a
bumpy road, or an electronic device in a vibrating industrial
setting, these vibrations can cause mechanical failures, loose
connections, and damage to sensitive components. MIL - STD - 810H -
Method 514.8 - Vibration testing is designed to simulate these real
- world vibration scenarios in a controlled laboratory environment.
By subjecting products to a range of vibration frequencies,
amplitudes, and durations, manufacturers can identify potential
weaknesses in their designs and take corrective actions before the
products reach the market. This helps in reducing product failures
in the field, improving customer satisfaction, and ultimately
saving costs associated with product recalls and repairs.
Key Requirements of the Standard
The MIL - STD - 810H - Method 514.8 - Vibration testing standard
outlines specific requirements for conducting vibration tests. It
defines different vibration profiles, including sinusoidal, random,
and shock vibrations, each of which is relevant to different types
of products and applications. For example, sinusoidal vibration
testing is often used to evaluate the response of products to
periodic vibrations, such as those caused by rotating machinery.
Random vibration testing, on the other hand, is more representative
of the complex vibrations experienced during transportation. The
standard also specifies the test levels, which are based on factors
such as the intended use of the product, the expected operating
environment, and the type of transportation. Additionally, the
standard requires proper mounting of the test specimen on the
shaker table and the use of appropriate sensors to measure the
vibration levels accurately.
2. How Electrodynamic Shakers Work
Basic Working Principle
Electrodynamic shakers operate on the principle of electromagnetic
induction. They consist of a moving coil that is suspended in a
magnetic field generated by a permanent magnet or an electromagnet.
When an electrical current is applied to the moving coil, a force
is generated according to Fleming's left - hand rule, which causes
the coil to move within the magnetic field. This movement is then
transferred to the shaker table, which in turn vibrates the test
specimen mounted on it. The amplitude and frequency of the
vibration can be precisely controlled by adjusting the magnitude
and frequency of the electrical current applied to the moving coil.

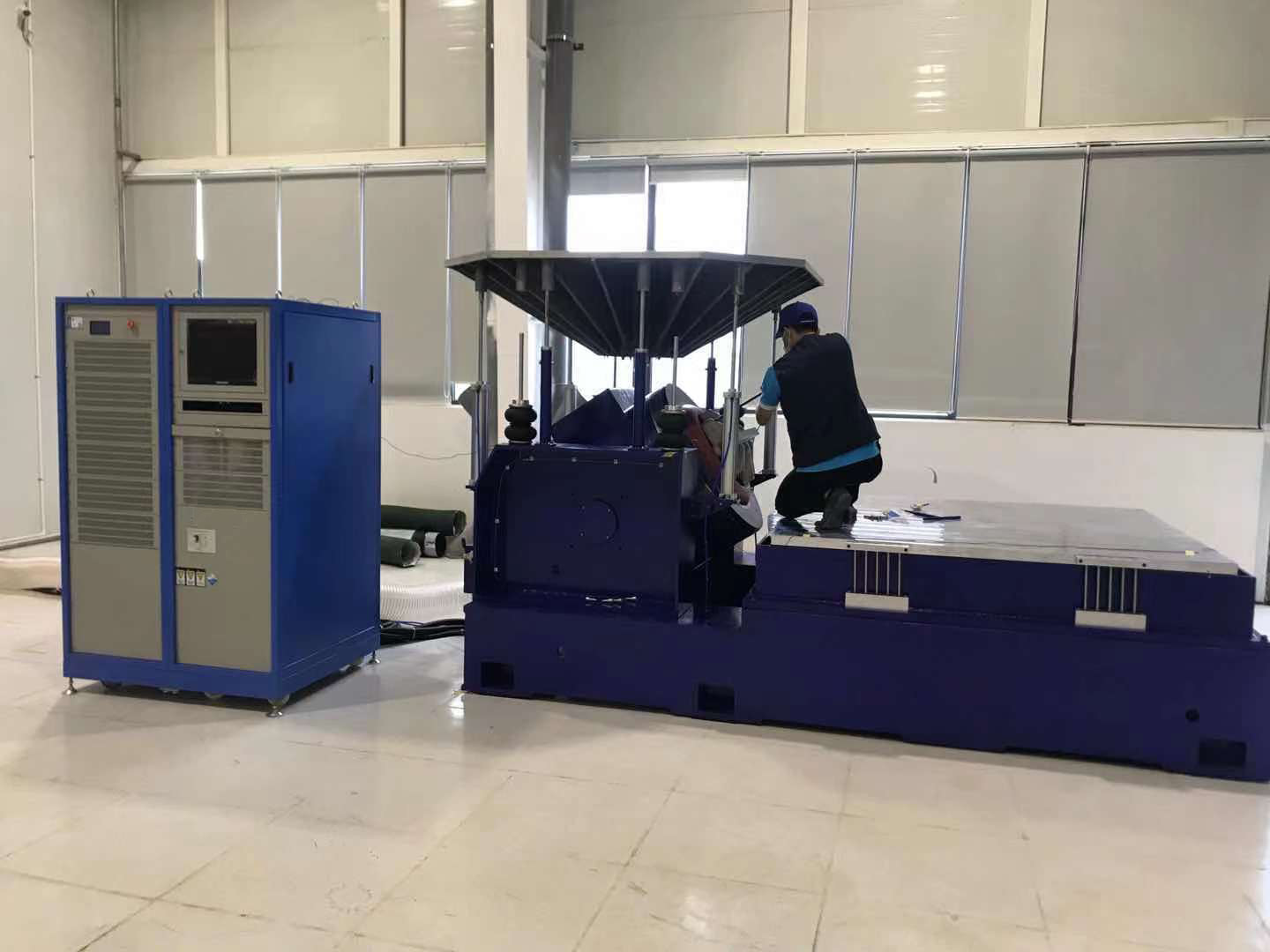

Components of an Electrodynamic Shaker
An electrodynamic shaker typically consists of several key
components. The power amplifier is responsible for supplying the
electrical current to the moving coil. It receives a low - level
signal from a controller and amplifies it to the required power
level to drive the shaker. The controller is the brain of the
system, allowing operators to set the desired vibration parameters
such as frequency, amplitude, and waveform. The shaker table is the
platform on which the test specimen is mounted. It is designed to
provide a flat and rigid surface to ensure uniform vibration
transfer to the specimen. Additionally, there are sensors such as
accelerometers that are used to measure the actual vibration levels
of the shaker table and provide feedback to the controller for
accurate control.
3. Performance Features of Electrodynamic Shakers for MIL - STD -
810H - Method 514.8 Testing
High - Precision Vibration Control
One of the key features of electrodynamic shakers used for MIL -
STD - 810H - Method 514.8 testing is their ability to provide high
- precision vibration control. They can accurately reproduce the
complex vibration profiles specified in the standard, with
frequency accuracy typically within ±0.1% and amplitude accuracy
within ±1%. This level of precision is crucial for ensuring that
the test results are reliable and repeatable. For example, when
testing a military - grade communication device, the shaker must be
able to simulate the exact vibration levels experienced during
airborne operations to accurately assess the device's performance.
Wide Frequency and Amplitude Range
Electrodynamic shakers are designed to cover a wide frequency
range, typically from a few hertz to several thousand hertz. This
wide range allows for the testing of products that are exposed to
different types of vibrations in real - world scenarios. For low -
frequency vibrations, such as those caused by vehicle suspension
systems, the shaker can accurately simulate the slow - moving
vibrations. For high - frequency vibrations, such as those
generated by high - speed machinery or aircraft engines, the shaker
can also produce the required vibration levels. In terms of
amplitude, electrodynamic shakers can provide a wide range of
acceleration levels, from a few g's to over 100 g's, depending on
the specific model and application. This flexibility in frequency
and amplitude range makes them suitable for testing a diverse range
of products, from small consumer electronics to large aerospace
components.
Robust Construction for Durability
Given the demanding nature of MIL - STD - 810H - Method 514.8
testing, electrodynamic shakers are built with robust construction
to ensure long - term durability. The shaker table and other
mechanical components are made of high - strength materials such as
aluminum or steel to withstand the high forces generated during
vibration testing. The moving coil and magnetic system are designed
to operate continuously under high - stress conditions without
degradation. Additionally, the power amplifier and controller are
engineered to be reliable and stable, providing consistent
performance over extended periods of use. This durability ensures
that the electrodynamic shaker can perform thousands of vibration
tests without significant maintenance, reducing downtime and
increasing the efficiency of the testing process.
Common Specifications
| Rated Sine/ Random/ Shock Force | 2,200 kgf/2.000 kgf/4,400 kgf | Armature Mass | 25 kg |
| Frequency Range | 5-3.000 Hz | Inserts Size (Standard) | M10 |
| Max. /Continuous Displacement p-p | 76 mm/63 mm | Load Attachment: Points (Standard) | 21 |
| Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
| Max. Sine/ Random Acceleration | 88/60g | Max. Vertical Load Support | 400 kg |
| Armature Diameter | 340 mm | Stray field @ 152 mm above table | ≤1mT (10 gauss) |
| Fundamental Resonance Frequency | 2,700 Hz (nom.) ± 5% | Dimension LxWxH | 1,160 mmx880mmx 1.050mm |
| Allowable Armature Overturning Moment | 500 Nm | Weight (Uncrated) | 1700 kg |
4. Applications of Electrodynamic Shakers in MIL - STD - 810H -
Method 514.8 Testing
Aerospace and Defense Industry
In the aerospace and defense industry, MIL - STD - 810H - Method
514.8 testing is essential for ensuring the reliability of
aircraft, missiles, and other military equipment. Electrodynamic
shakers are used to test components such as avionics systems,
navigation equipment, and weapon systems. For example, when
developing a new aircraft, the electronic components installed in
the cockpit need to be tested for their ability to withstand the
vibrations during takeoff, flight, and landing. The electrodynamic
shaker can simulate these vibrations accurately, allowing engineers
to identify any potential issues with the components and make
necessary design improvements. In the case of missiles, the
guidance systems and warhead components are subjected to vibration
testing to ensure their proper functioning under the high -
vibration environment during launch and flight.
Automotive Industry
The automotive industry also benefits greatly from MIL - STD - 810H
- Method 514.8 testing using electrodynamic shakers. Automotive
components such as engines, transmissions, and electronic control
units are tested to ensure their reliability under the vibrations
experienced during normal driving and in extreme conditions. For
example, the engine mounts need to be tested to ensure that they
can effectively isolate the engine vibrations from the vehicle's
body. The electrodynamic shaker can simulate the vibrations
generated by the engine at different speeds and loads, allowing
manufacturers to optimize the design of the engine mounts.
Additionally, electronic components in modern cars, such as
infotainment systems and advanced driver - assistance systems, are
tested for their ability to withstand vibrations to prevent
malfunctions that could affect the safety and performance of the
vehicle.
Consumer Electronics Industry
In the consumer electronics industry, where products are often
subjected to vibrations during transportation and daily use, MIL -
STD - 810H - Method 514.8 testing is becoming increasingly
important. Electrodynamic shakers are used to test smartphones,
laptops, tablets, and other portable devices. For example, a
smartphone manufacturer may use an electrodynamic shaker to test
the durability of the device's internal components, such as the
battery, camera module, and motherboard, under vibration. This
helps in ensuring that the product can withstand the rough handling
during transportation and the normal vibrations experienced in a
user's pocket or bag. By conducting these tests, manufacturers can
improve the quality and reliability of their consumer electronics
products, reducing the number of returns due to vibration - related
issues.
5. Conclusion
Electrodynamic shakers that run MIL - STD - 810H - Method 514.8 -
Vibration testing are essential tools for ensuring the reliability
and durability of products across various industries. By accurately
simulating real - world vibration scenarios, these shakers help
manufacturers identify and address potential design flaws before
products are released into the market. With their high - precision
vibration control, wide frequency and amplitude range, robust
construction, and diverse specifications, electrodynamic shakers
play a crucial role in improving product quality, reducing costs
associated with product failures, and ultimately enhancing customer
satisfaction.
If your industry requires rigorous vibration testing to meet the
MIL - STD - 810H standard, we are here to assist. Our team of
experts can provide you with high - quality electrodynamic shakers
tailored to your specific needs. Contact us today to discuss how we
can help ensure the success of your product development and quality
assurance efforts.
